HOLLOW CONE SPRAY NOZZLES

Hollow cone spray nozzles work on the tangential flow principle and are manufactured by machine tool operation from metal bar stock. This offers versatile construction of small sized nozzles. In addition nozzles can be made on request from any special material and alloys that are available as a bar stock. This flow pattern is essentially a circular ring of liquid. Hollow cone nozzles are best for application requiring good atomization of liquids at lower pressures or where quick heat transfer is needed.

These Hollow cone nozzles work on the tangential flow principle and are manufactured by machine tool operation from metal bar stock. This offers versatile construction of small sized nozzles. In addition nozzles can be made on request from any special materials and alloys that are available as a bar stock. There are Following types of hollow cone nozzles.
1) Tangential Entry 2) Inline (Axial) Entry 3) Spiral Hollow Cone.

Design : Vaneless (Two Piece Construction ) Non clogging

Application : Cooling & Washing of gas


Hollow cone spray nozzle

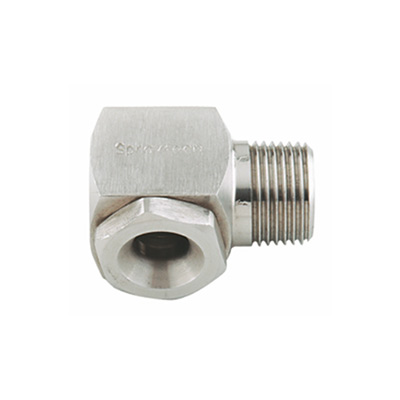

BA SERIES

FLOW RANGE : 0.5 TO 80 LPM
SPRAY ANGLE : 60, 90, 120
MATERIAL : SS704, SS316
END CONNECTION : 1/8", 1/4", 3/8", 1/2", 3/4"


Hollow cone spray nozzle

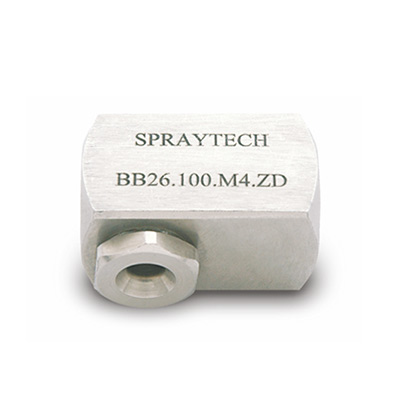

BB SERIES

FLOW RANGE : 0.5 TO 80 LPM
SPRAY ANGLE : 60, 90, 120
MATERIAL : SS704, SS316
END CONNECTION : 1/8", 1/4", 3/8", 1/2", 3/4"


Hollow cone spray nozzle

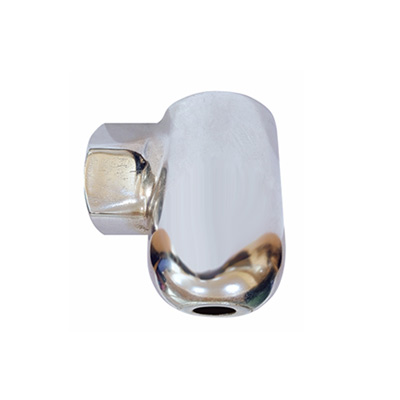

BC SERIES

FLOW RANGE : 50 TO 540 LPM
SPRAY ANGLE : 75, 90
MATERIAL : SS704, SS316
END CONNECTION : 1, 1-1/2", 2", 2-1/2"


Hollow cone spray nozzle

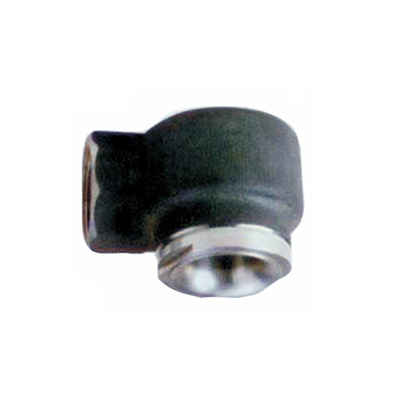

BD SERIES

FLOW RANGE : 50 TO 540 LPM
SPRAY ANGLE : 130
MATERIAL : SS704, SS316
END CONNECTION : 1", 1-1/2", 2", 2-1/2"


Hollow cone spray nozzle

BE SERIES

FLOW RANGE : 510 TO 3181 LPM
SPRAY ANGLE : 130
MATERIAL :
END CONNECTION : 3", 4"


Hollow cone spray nozzle

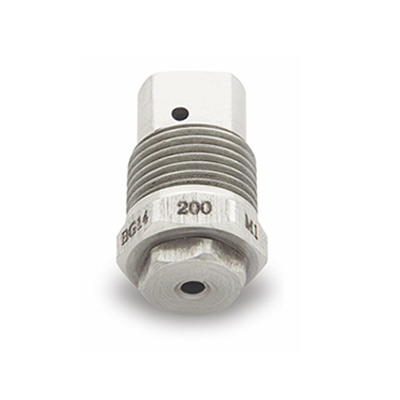

BG SERIES

FLOW RANGE : 0.5 TO 80 LPM
SPRAY ANGLE : 60, 90, 120
MATERIAL : SS704, SS316
END CONNECTION : 1/4", 3/8", 1/2", 3/4", 1-1/2"


Hollow cone spray nozzle

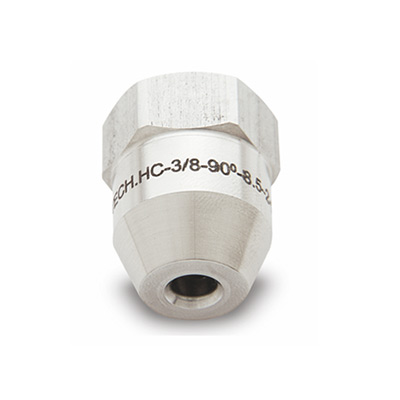

BH SERIES

FLOW RANGE : 0.5 TO 16 LPM
SPRAY ANGLE : 60, 75, 90
MATERIAL : SS704, SS316
END CONNECTION : 1/8", 1/4", 3/8", 1/2"


Hollow cone spray nozzle

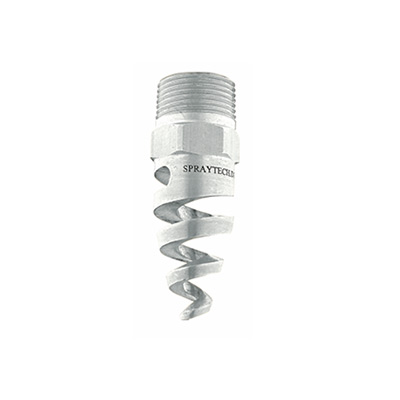

BI SERIES

FLOW RANGE : 6.5 TO 337 LPM
SPRAY ANGLE : 60, 90, 120, 180
MATERIAL : SS704, SS316
END CONNECTION : 1/4", 3/8", 1/2", 3/4", 1
