TANK CLEANING SPRAY BALLS

Suited for CIP systems. No motor source is needed due to the reaction force of the cleaning liquid to rotate spray head. Low pressure for cleaning and rinsing application. For rinsing small and medium sized vessels for example dairy, chemical, pharmaceutical and food industries. Material of construction-corrosion resistance TEFLON.

Application : Cleaning of tanks up to 3 m in diameter. Self - rotating. Double bearings.


Tank Washing Spray Nozzles

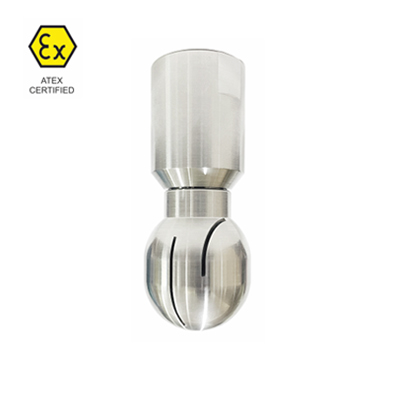

EG SERIES

FEATURES : Double sided bearing for effortless rotation Best suitable for SS reactors, Pharmaceutical Vessels.
SPRAY ANGLE : 270°, 360°
CLEANING DIAMETER : Upto 2.5 M
TYPE : Self - rotating.
MATERIAL : SS304, SS316


Tank Washing Spray Nozzles

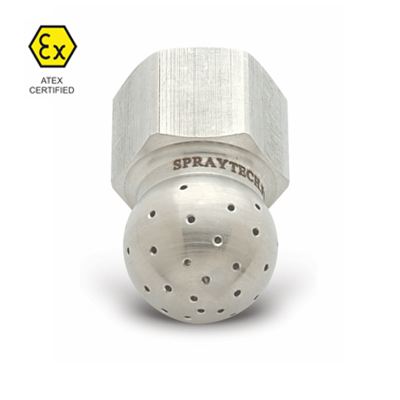

EH SERIES

FEATURES : Uni body design Multiple orifice for high impact jet spray.
SPRAY ANGLE : 180°, 270°
CLEANING DIAMETER : Upto 1.5 M
TYPE : Stationary
MATERIAL : SS304, SS316, PTFE


Tank Washing Spray Nozzles

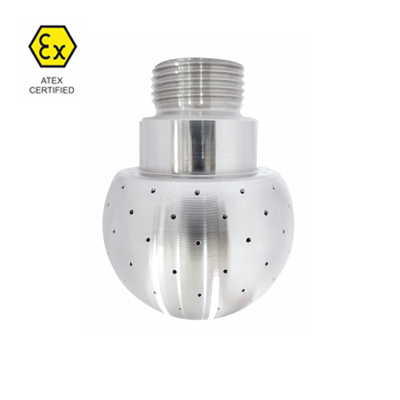

EI SERIES

FEATURES : Uni body design, Multiple jet spray with high flow.
SPRAY ANGLE : 180°, 270°, 360°
CLEANING DIAMETER : Upto 2.5 M
TYPE : Stationary
MATERIAL : SS304, SS316


Tank Washing Spray Nozzles

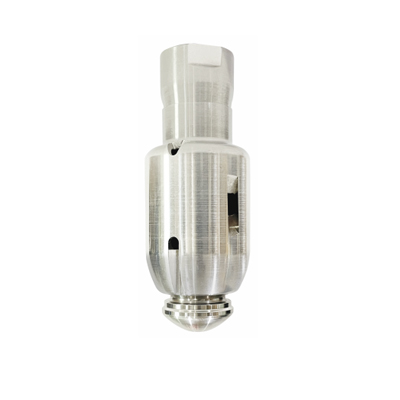

EP SERIES

FEATURES : Compact design with flat slit for high impact spray
Spray Angle : 360°
CLEANING DIAMETER : Upto 1.5 M
TYPE : Self - rotating.
MATERIAL : SS316
